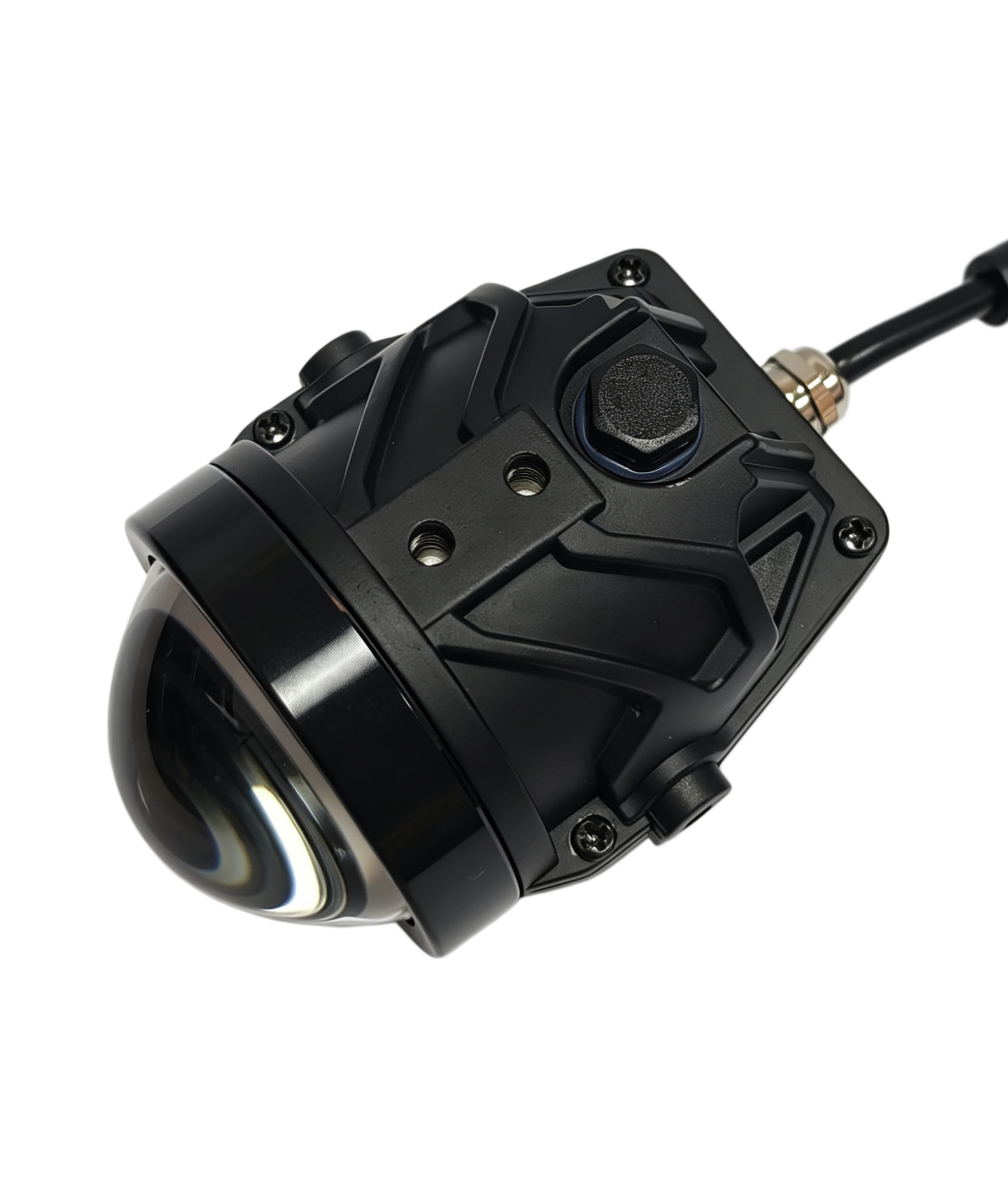

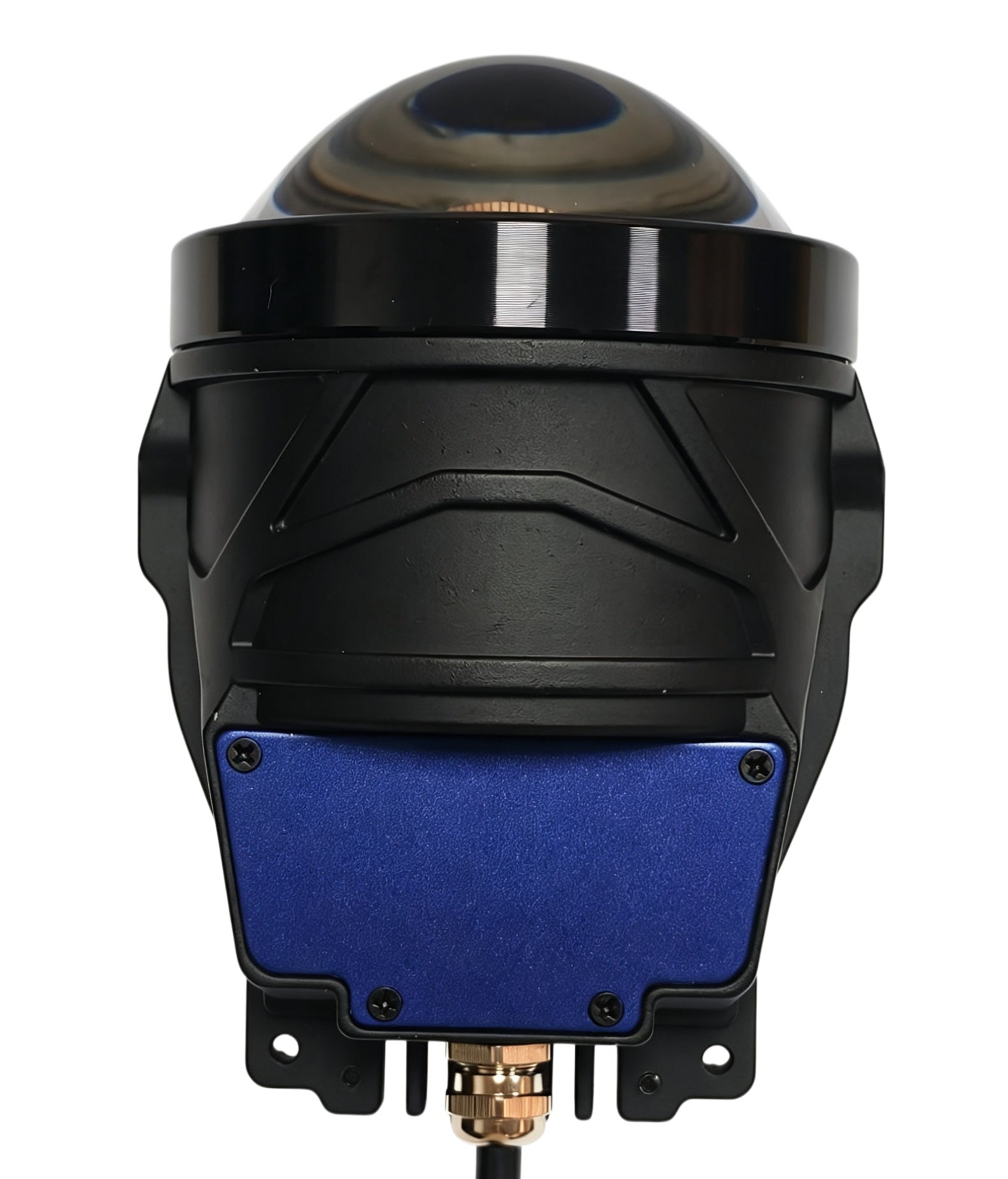

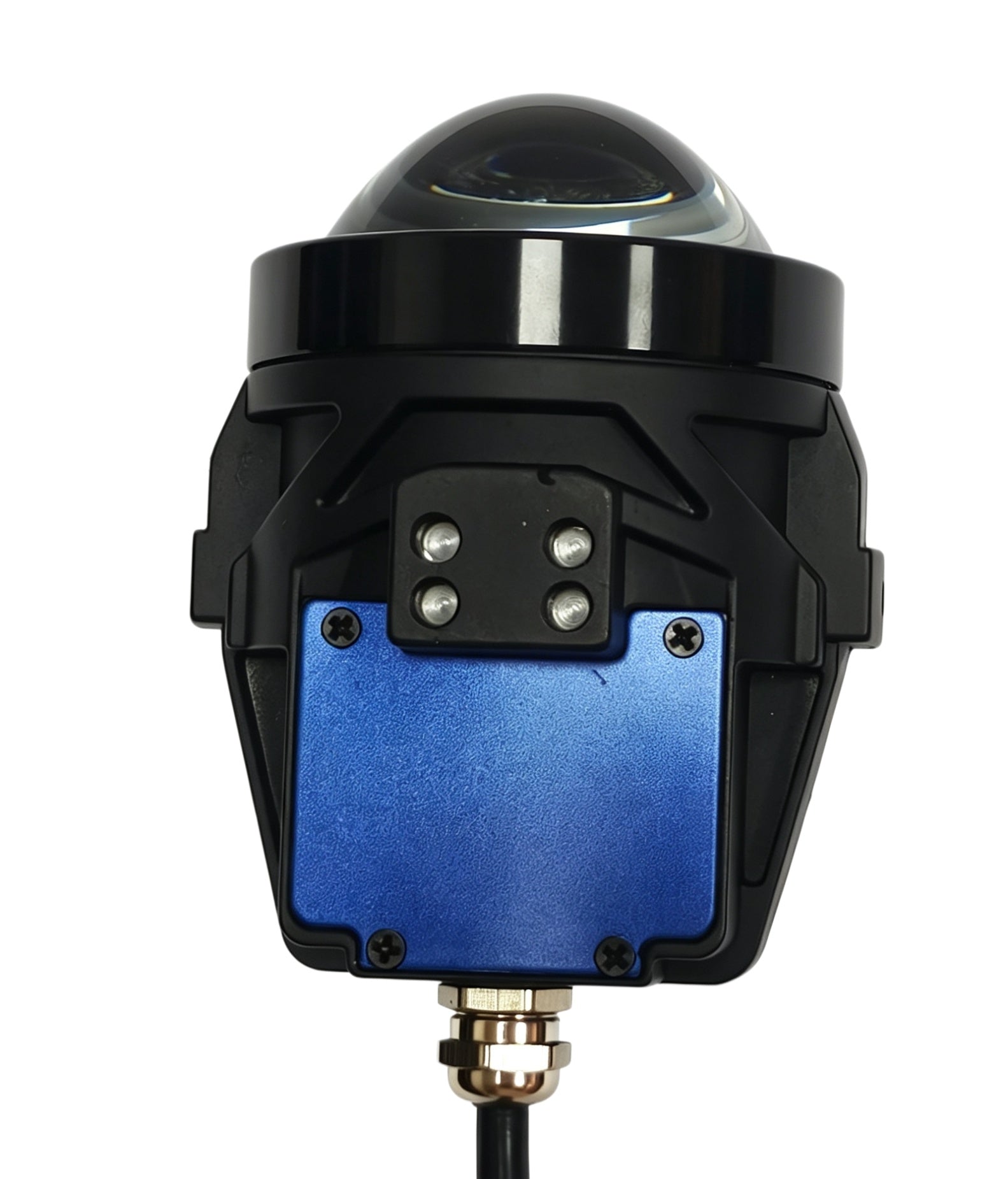

HX-M20 2-Inch LED Fog Lamp Assembly with Toyota Bracket (35W)

Compact Design, Uncompromised Clarity

Upgrade your vehicle’s lighting with the HX-M20 LED Fog Lamp. Featuring a highly efficient 2-inch single reflector design, this compact yet powerful 35W unit is engineered to cut through fog, rain, and darkness. Designed for seamless integration, it comes fully equipped with a dedicated Toyota bracket for a perfect, factory-style fitment.

🔥 Core Upgrades & Features

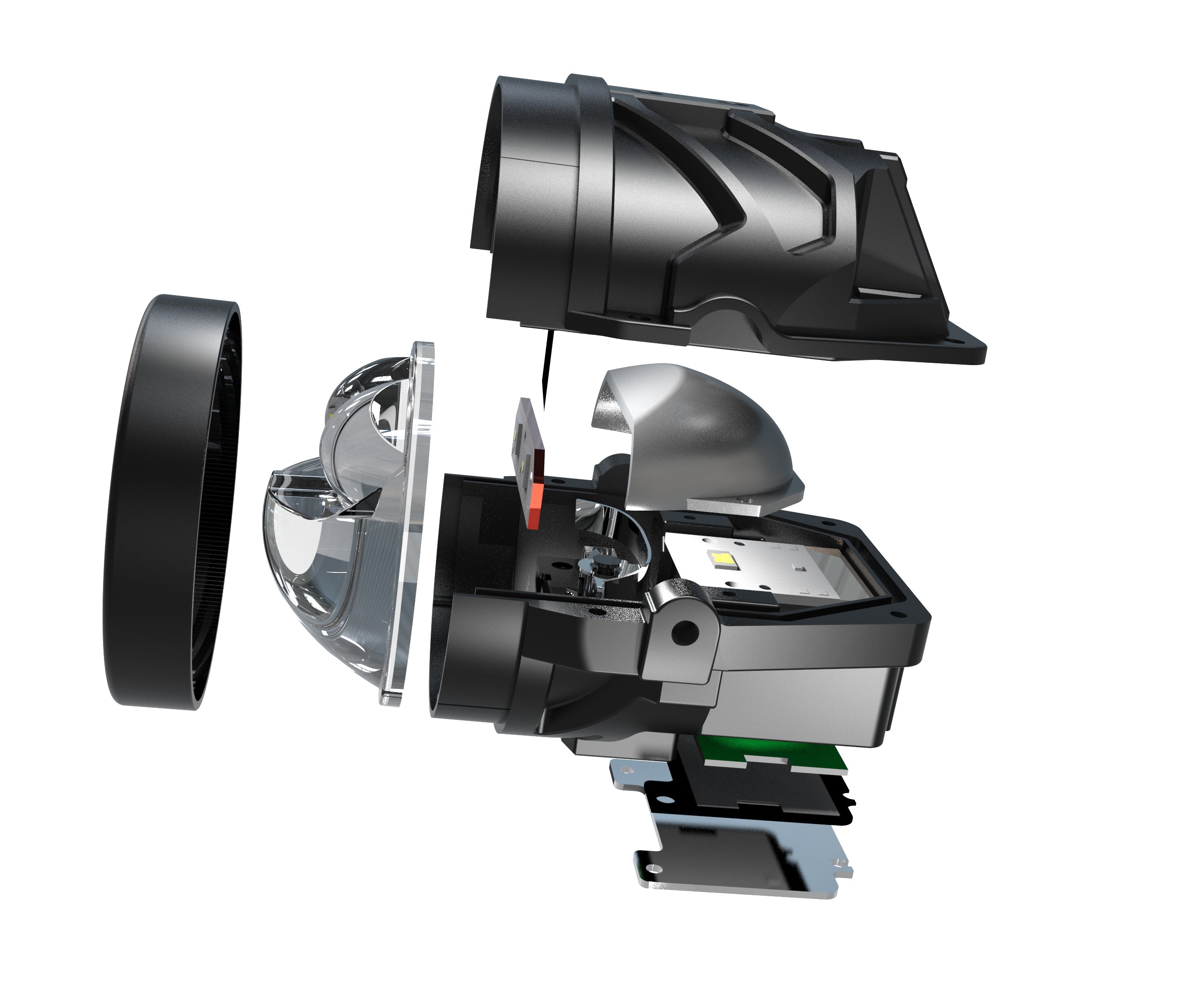

• Advanced Staggered Chip Layout: Powered by our upgraded 3570 51MIL 6-core LED chips, utilizing a specialized staggered layout distribution. This engineered arrangement optimizes heat dissipation and ensures a perfectly focused, uniform beam pattern without blind spots.

• High-Intensity Output: Despite its compact 2-inch footprint, it delivers an impressive 2500LX Low Beam for wide road coverage and a focused 5000LX High Beam for extended visibility in extreme conditions.

• Lightweight & Efficient Build: At just 280g per piece, the streamlined lamp body (90 x 60.5 x 70 mm) maximizes space efficiency while maintaining robust durability and superior cooling.

• Toyota-Ready Installation: Specifically paired with a custom Toyota mounting bracket for quick, precise, and secure installation.

⚙️ Technical Specifications

• Model: HX-M20

• Design: 2-Inch Single Reflector (单杯)

• Output Power: 35W

• LED Specifications: Upgraded 3570 51MIL (6-Core, Staggered Layout)

• Low Beam Illuminance: 2500LX

• High Beam Illuminance: 5000LX

• Dimensions: 90 * 60.5 * 70 mm

• Weight: 280g (per piece)

• Mounting: Includes Toyota-compatible bracket

• Packaging: Premium Color Box
